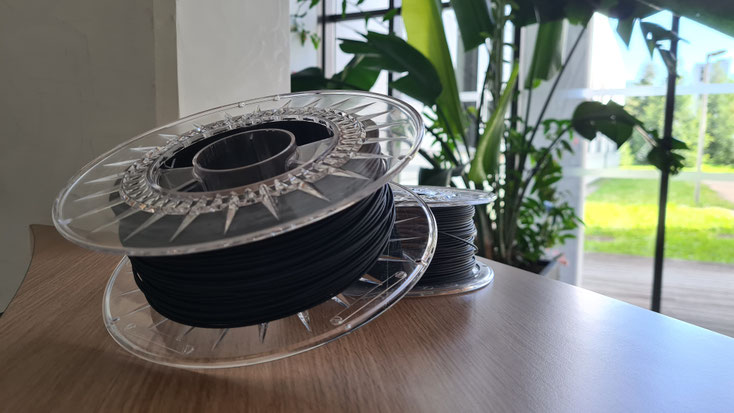

FILAMAG-F
FILAMAG-F is our flexible RF absorbing filament, designed to conform to any geometry and integrate into constrained spaces where rigid absorbers simply cannot go.
Validated by RF simulation and measurement, manufactured in France.
This range is also available as pellets.
Why FILAMAG-F
Its flexibility makes it the go-to solution for antenna decoupling in multi-antenna systems: placed between two antennas, FILAMAG-F reduces mutual coupling by up to -9.3 dB at Wi-Fi frequencies, without affecting radiation patterns.
It is equally effective inside metal enclosures, where it suppresses cavity resonances by 10 to 30 dB depending on thickness and configuration, protecting your electronics from self-generated interference.
For RF termination applications, FILAMAG-F can be 3D-printed into profiled geometries matched to standard waveguide dimensions, delivering below -15 dB from 6 to 33 GHz.

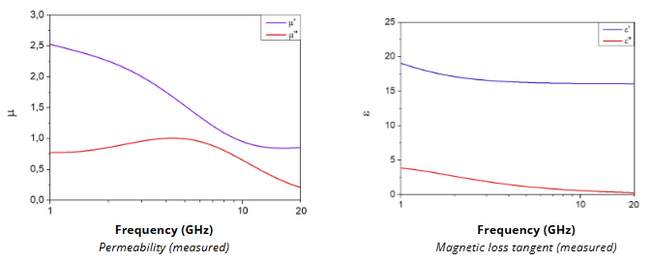

Measured Permeability and measured Magnectic loss tangent of FILAMAG-F

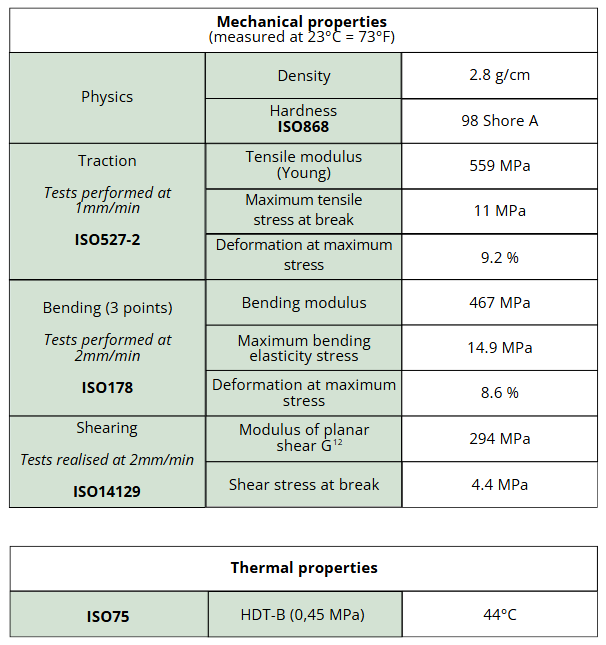

Properties of test samples printed with FILAMAG-F, successively at -45 and +45° per layer
