Pellets - POLYMAG

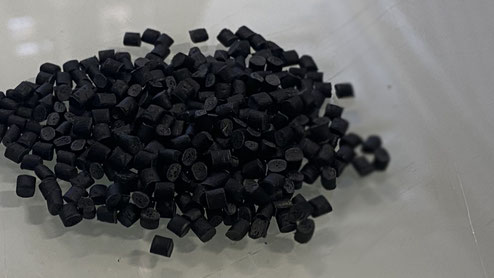

EMC/EMI absorption pellets merge NANOMAG magnetic powders (MnZn, Fe₃O₄...) with tailored polymer matrices. The powders supply electromagnetic properties, in order to optimize permeability, permittivity, reflectivity and also reflection loss, while the polymers provide the mechanical performance the application demands, like flexibility, rigidity, heat resistance...
These pellets also enable the synthesis of filaments FILAMAG-T & FILAMAG-F.
Properties
| Electromagnetic properties | Manganese-Zinc (MnZn) Fe₂O₄ powder |
Iron oxide (Fe) Fe₂O₄ powder |
| Frequency range | 100 MHz - 5 GHz | 1 GHz - 30 GHz |
| Density (g/cm³) | 3.5 | 4.2 |
| Purity | 85% | 99+% |
| Laser granulometry (µm) |
2 (avg) |
4.6 (avg) |
| Crystal size with SEM pictures (nm) |
D10: 150 D50: 300 D90: 520 |
D10: 250 D50: 1300 D90: 2500 |
| Curie temperature (°C) | 330 | 580 |
| Saturation magnetisation (emu/g) | 55-70 | 86 |
| Polymer family | Mechanical assets |
| Copolyester | Flexibility, soft touch, easy over-molding |
| PA6 (Nylon-6) | Rigidity, heat resistance, structural strength |
| ULTEM (PEI) / PEKK | Aerospace grade, heat resistance |
- Compatible with injection molding, extrusion and additive manufacturing
- Consistent pellet size for homogenous dispersion
Custom-made Pellets
Do you have distinctive specifications?
Let's develop together your perfect product!
Our R&D team can work on these topics among others:
-
Industrial process integration: Tailoring custom composite pellets directly ready for injection molding and large-scale industrial manufacturing.
-
Multi-requirement optimization: Compounding technical matrices (from Nylon-6 up to aerospace-qualified PEI) to solve complex EMC and environmental constraints simultaneously.
-
Loading rate control: Maximizing electromagnetic performance (attenuation, reflection loss level) without compromising the material's processability.
-
Scale-up & Industrialization: Supporting your transition from custom formulation to high-volume production with clear milestones and technology transfer.
Navigation
What about HYMAGIN?
HYMAG'IN combines RF engineering expertise with advanced magnetic materials to help engineers solve their electromagnetic challenges. We offer both off-the-shelf absorbers and fully custom solutions, available as filaments, pellets, resins, inks and powders.
Every solution is validated by RF simulations and measurements, and manufactured in France.
